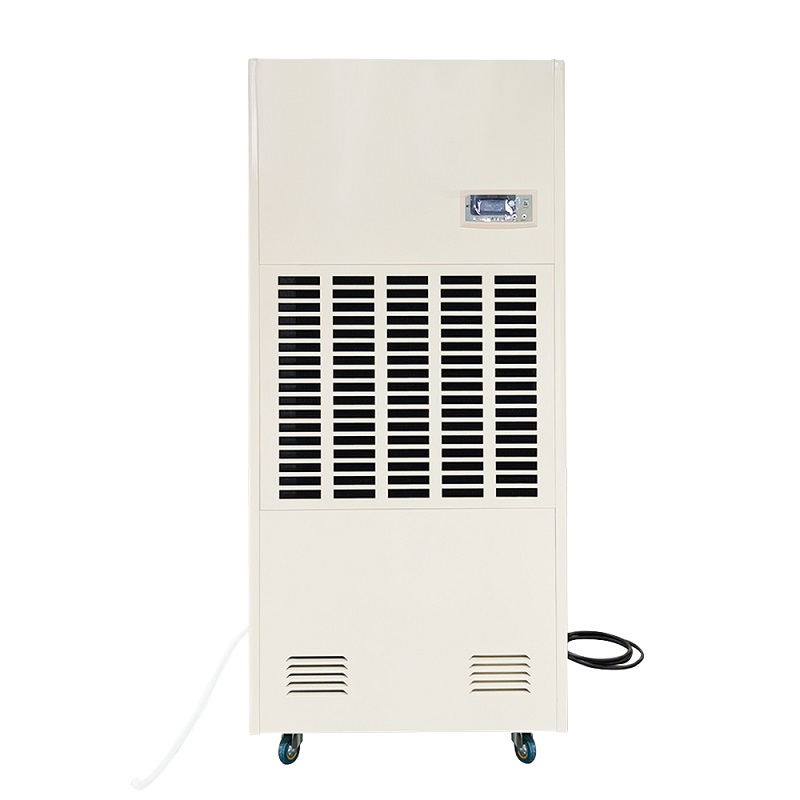

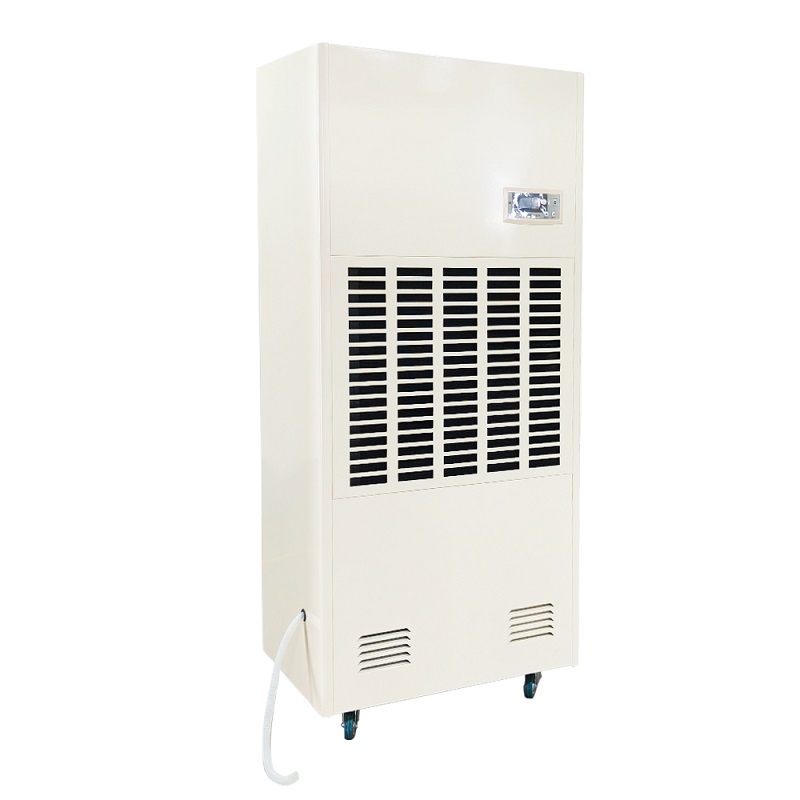

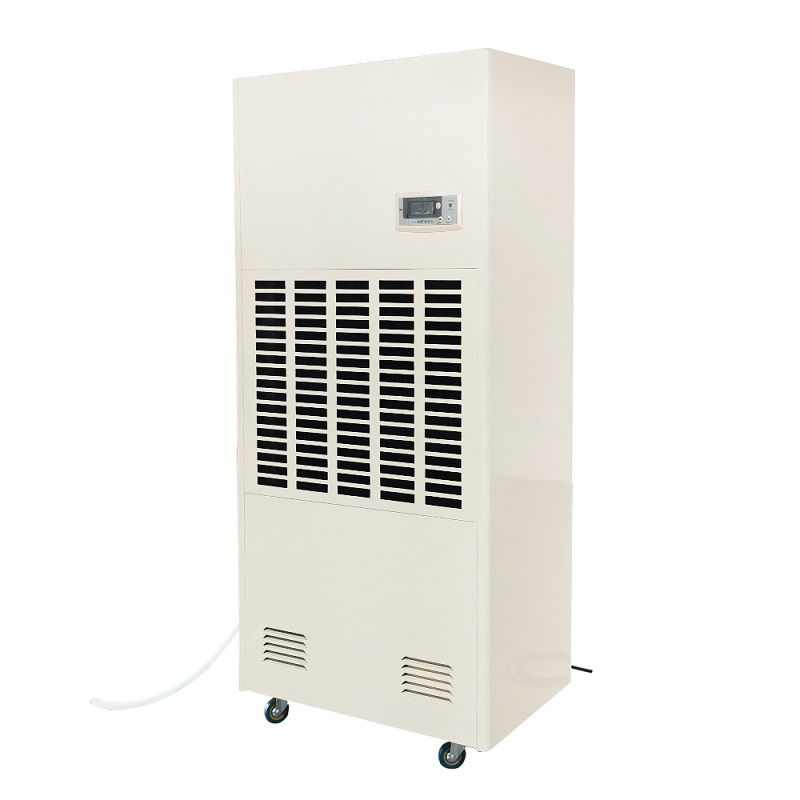

INDUSTRIAL DEHUMIDIFIER

DJ-2481E

Nominal dehumidification: 240L/day
Power supply: 380V/50Hz
Rated input power: 3.5KW
Rated input current: 5.5A

Features

Ambient temperature humidity display timely
World famous LG compressor with safety protection
Humidity control range 45%-95%RH,accuracy to ±3%
3 minutes delay start protection
Eco-friendly refrigerant R410a

Timed on/off setting with memory function
Continously drainage by external soft tube
Sensor fault indication function
Support RS485 interface, multiple online control
Automatically defrosting

Why_DJ-2481E

Fashionable design, large circulating air volume, LCD display showing temperature and humidity in real time, high dehumidification efficiency, suitable for factories, warehouses, swimming pools, greenhouses and other scenes, it is your ideal choice.

Model number	DJ-2481E
Nominal dehumidification（30℃，RH80%）	240L/day
Power supply	380V/50Hz
Rated input power	3.5KW
Rated input current	5.5A
Circulating air flow	2800m³/h
Humidity control range	40%-95%
Drainage way	Hose connection
Working temperature range	5~38°C
Refrigerant	R407c/R410a
Noise	≤60db
Compressor type	Rotary
Warranty	1 Year
Standard packaging	Wooden case
Certification	CE
Net weight/Gross weight	106kg/137kg
Machine size	775x470x1700 mm
Package size	845x525x1880 mm

Working Principle

The principle of the dehumidifier is-to discharge theair vapor-cooled self-condensing liquid through daocooling,reduce the air humidity,and achieve thedehumidification effect. The working principle is topass the compressor dao,two devices (evaporator,condenser)，capillary tube,and The refrigerant in thecopper pipe changes from a high-temperature andhigh-pressure gas to a low-temperature and low-pressure liquid.The air inhaled into the machine has alarge temperature difference, which quickly condenseswater droplets and slides into the drain box throughthe two fins to reduce the air humidity and achievethe effect of dehumidifcation.

Installation

The dehumidifier should be installed in a place with air circulation, and avoid placing it in dead corners, causing short circuits in the air flow and failing to achieve the required dehumidification effect. At the same time, the dehumidifier should be placed on a firm and flat floor to avoid vibration and noise. Also, avoid direct sunlight or close to heating appliances.
