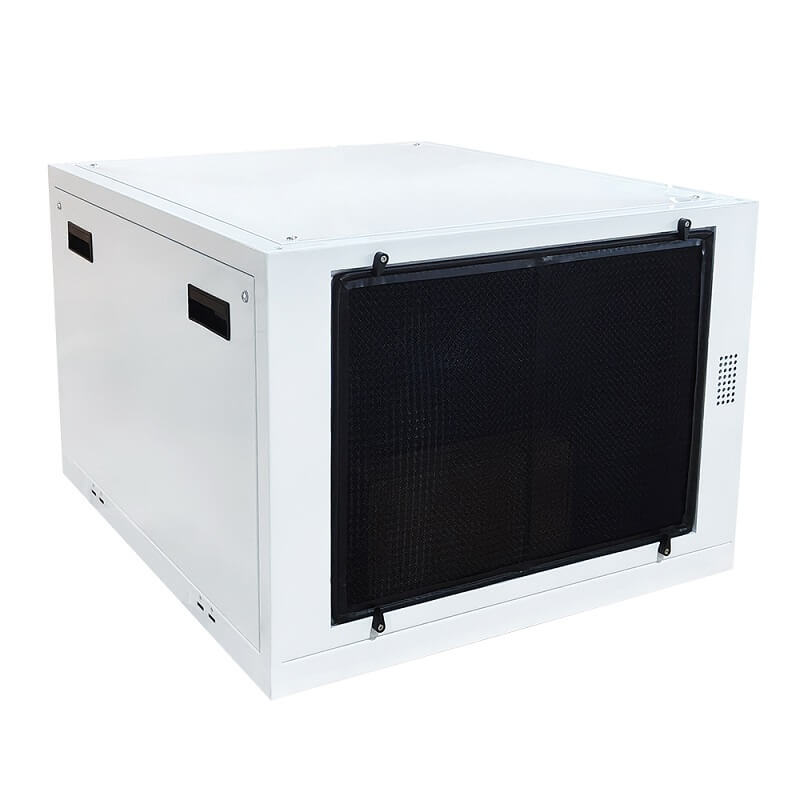

DJDD-1601E 160 L/Day Ceiling-Mounted Dehumidifier
160 L/Day Ceiling-Mounted Dehumidifier for Space-Saving Humidity Control
- Nominal dehumidification: 160 L/day (30°C, 80% RH)
- Circulating Airflow: 1200 m³/h
- Power supply: 220-240V/50Hz
- Rated input power: 1.8 kw
- Rated input current: 8.2A
- Working Temperature: 5–38°C
- Humidity Control: 40–95% RH*
Product Overview
The TOJJE DJDD-1601E is a 160 L/day ceiling-mounted dehumidifier designed for commercial and industrial indoor environments that require reliable humidity control while minimizing floor space usage.
With a dehumidification capacity of 160 L/day at 30°C and 80% RH, the DJDD-1601E provides continuous moisture removal for warehouses, workshops, commercial facilities, indoor agricultural spaces and other high-humidity environments.
Its ceiling-mounted design keeps the equipment off the floor, while continuous hose drainage supports extended operation with minimal manual intervention. The adjustable humidity control range of 40–95% RH allows the unit to be configured according to different indoor humidity requirements.
Why Choose the DJDD-1601E
A ceiling-mounted dehumidifier provides an effective way to control humidity without occupying valuable floor space.
Save Floor Space
The unit is installed overhead, leaving the floor available for equipment, storage, production or other activities.
Reduce Obstructions
Ceiling installation keeps the dehumidifier away from vehicles, workers, furniture and other floor-level obstacles.
Support Continuous Operation
With a connected drainage system, condensed water can be discharged continuously without requiring frequent manual emptying.
Flexible for Commercial and Industrial Spaces
Ceiling-mounted installation is suitable for warehouses, workshops, commercial buildings, agricultural facilities and other indoor environments where floor space is limited.
Key features include:
-
160 L/Day Dehumidification Capacity
Designed for enclosed spaces, the DJDD-1601E efficiently removes excess moisture and provides effective humidity control. -
Adjustable Humidity Control
Users can set the desired humidity level. When ambient humidity rises above the set value, the unit automatically starts dehumidifying. -
Automatic Operation
The unit automatically starts or stops according to ambient humidity conditions, helping maintain stable indoor humidity while reducing unnecessary energy consumption. -
Timer ON/OFF
The built-in timer allows users to schedule the operating time according to their application requirements. -
Continuous Hose Drainage
Condensed water is discharged through a connected drainage hose, making the unit suitable for extended operation.
Product Specifications
| Model | DJDD-1601E |
| Dehumidification Capacity (30 °C, RH 80%) | 160 L/day |
| Power Supply | 220-240V/50Hz |
| Rated Power | 1.8 kW |
| Rated Current | 8.2 A |
| Circulating Airflow | 1200 m³/h |
| Recommended Area | 130–170 m² |
| Humidity Control Range | RH 40%–95% |
| Drainage Method | Hose Drainage |
| Working Temperature | 5–38°C |
| Compressor type | Rotary |
| Noise Level | ≤ 60 dB |
| Drainage way | Hose connection |
| Warranty | 1 Year |
| Machine Dimensions | 770 × 660 × 463 mm |
| N.Weight/G.Weight | 54kg/ 73kg |
| Package Dimensions | 820 × 690 × 600 mm |
| Packaging | Wooden Case |
| Note: The machine is continuously upgraded and improved. Its appearance, dimensions, and some specifications may change without prior notice. Please refer to the actual product for the latest specifications. | |
How Does the DJDD-1601E Work?
160 L/Day Ceiling-Mounted Dehumidifier Applications
The DJDD-1601E is designed for indoor environments where excess humidity needs to be continuously controlled. Its ceiling-mounted configuration makes it particularly suitable for spaces where floor area is limited or where equipment needs to remain out of the way.
Typical applications include:
* Warehouses and storage facilities
* Workshops and production areas
* Commercial buildings
* Indoor agricultural facilities
* Basements and moisture-prone spaces
* Indoor pools and recreational facilities
* Other commercial or industrial areas requiring continuous humidity control
For projects with different room sizes, temperatures, humidity levels or moisture loads, TOJJE can recommend a suitable dehumidifier capacity based on the actual operating conditions.
Installation Considerations
The DJDD-1601E should be installed on a firm and secure ceiling structure in a location with good air circulation. Avoid obstructing the air inlet and outlet or installing the unit in areas with restricted airflow, as insufficient circulation may reduce dehumidification performance. Keep the unit away from direct sunlight and heat sources, and allow sufficient clearance for inspection and maintenance. Ensure that the drainage system is properly connected before operation.
Frequently Asked Questions
The DJDD-1601E provides a nominal dehumidification capacity of 160 L/day at 30°C and 80% RH.
It is a ceiling-mounted refrigeration dehumidifier designed for commercial and industrial indoor humidity control.
The recommended area is approximately 130–170 m², depending on room temperature, humidity, ceiling height, ventilation and moisture load.
The unit uses hose drainage for condensate discharge and can be connected to an appropriate drainage system for continuous operation.
The humidity control range is 40–95% RH.
It can be used in warehouses, workshops, commercial buildings, agricultural facilities, basements and other indoor environments requiring humidity control.
Ceiling installation saves floor space, reduces obstruction around the equipment and is suitable for environments where floor-mounted equipment is inconvenient.
The selection depends on room size, ceiling height, temperature, current relative humidity, target humidity, ventilation and moisture load. TOJJE can recommend a suitable model based on these operating conditions.
Documents
| Datasheet | |||||
|---|---|---|---|---|---|
| File | Language | Format | Sizet | Last updated | Downloads |
| DJDD-1601E | English | 242kb | 24/09/2026 | ||
